LDAP Source Connector

The LDAP source connector lets DataSync retrieve data from LDAP (Lightweight Directory Access Protocol) server and load it into your data warehouse. It supports both unencrypted connections and secure connections over TLS/SSL. Once your source connection is ready, configure your destination connection to finish the setup.

important

The LDAP connector supports only the Truncate and Load option for running extractions.

Create the source connection in DataSync

1. Log in to DataSync.
2. From the welcome screen, select Connections.
3. Next to Source Connections, click New.
4. Select LDAP.
5. Enter all required connection properties.
6. (Optional) In the Additional Connection Properties panel, click Add property and enter any extra parameters you need.
7. Configure the advanced settings to match your environment, including Tracking Type.
8. Click Save.

Connection properties

Property	What to enter
Description	Unique name for the connection. Example: LDAP.
Server	Domain name of the LDAP server, without the LDAP:// prefix. Example: ldapserver.mydomain.local.
Port	Port the LDAP server is running on. Default: 389. If you enable Enable LDAP over TLS/SSL, use port 636 instead.
Enable LDAP over TLS/SSL	Secures the connection using TLS/SSL encryption.
Username	Login account in domain format. Example: DOMAIN\\jdoe.
Password	Password for this account.
Search base	Base distinguished name (DN) for queries. Set to the root directory or a specific subtree. Example: DC=mydomain,DC=local or OU=Users,OU=Canada,DC=mydomain,DC=local.
Maximum number of records	Maximum number of records returned. Set to -1 for no limit.
Scope	Depth of the directory search. Whole Subtree searches the base and all descendants. This is the default. Single Level searches the base and direct descendants only. Base Object searches the root of the search base only.
Timeout	Time in seconds to wait before a connection attempt or query execution times out.
Follow Referrals	Follows referrals returned by the LDAP server to retrieve data from other directory partitions.
Friendly GUID	Controls how GUID attributes such as objectGUID are returned. When enabled, values are returned as readable strings. Example: 708d9374-d64a-49b2-97ea-489ddc717703. When disabled, values are returned as base64-encoded strings.
Friendly SID	Controls how SID attributes such as objectSID are returned. When enabled, values are returned as readable strings. Example: S-1-5-21-4272240814-246508344-1325542772-12464. When disabled, values are returned as base64-encoded strings.
Verbosity	Controls how much detail the connector writes to the log. Each level includes everything from the level below it, plus additional detail. 1 logs queries, row counts, execution start and end times, and errors. 2 adds cache queries and HTTP headers. 3 adds request and response bodies. 4 adds transport-level communication. 5 adds all interface commands.
Enable Pooling	Enables connection pooling, which keeps a set of database connections open and reuses them across extractions instead of opening a new connection each time. This reduces overhead and improves performance when multiple extractions run at the same time.
Pool idle timeout	Time in seconds a connection can stay idle before returning to the pool.
Max Pool Size	Maximum number of connections allowed in the pool at the same time.
Pool wait time	Time in seconds DataSync waits for an available connection before throwing an error.

Additional connection properties

Use this panel to enter connection string properties not available in the Connection Properties panel. For sensitive values such as passwords, set the type to Encrypted. The value is hidden in the interface and stored encrypted in the back end.

Property	What to enter
SSLServerCert	Certificate used to validate the TLS/SSL connection. If not specified, any certificate trusted by the machine is accepted. Accepted formats: PEM certificate: -----BEGIN CERTIFICATE----- ... -----END CERTIFICATE----- File path: C:\cert.cer Public key: -----BEGIN RSA PUBLIC KEY----- ... -----END RSA PUBLIC KEY----- MD5 thumbprint: ecadbdda5a1529c58a1e9e09828d70e4 SHA1 thumbprint: 34a929226ae0819f2ec14b4a3d904f801cbb150d
AuthMechanism	Authentication mechanism used for the connection. SIMPLE for standard plain text authentication. This is the default. DIGESTMD5 for challenge and response authentication. NEGOTIATE for NTLM authentication.

Advanced settings

These settings control how the connector tracks data changes, handles time and regional configuration, and processes records during extraction. Configure them to match your LDAP environment so that results stay accurate and consistent.

Setting	What to select
Batch Size	Number of records processed per batch during extraction. Larger batches can improve performance but use more memory. Default is 2000, maximum is 10000. Adjust based on your network speed and disk performance. The default works well in most cases.

Example setup

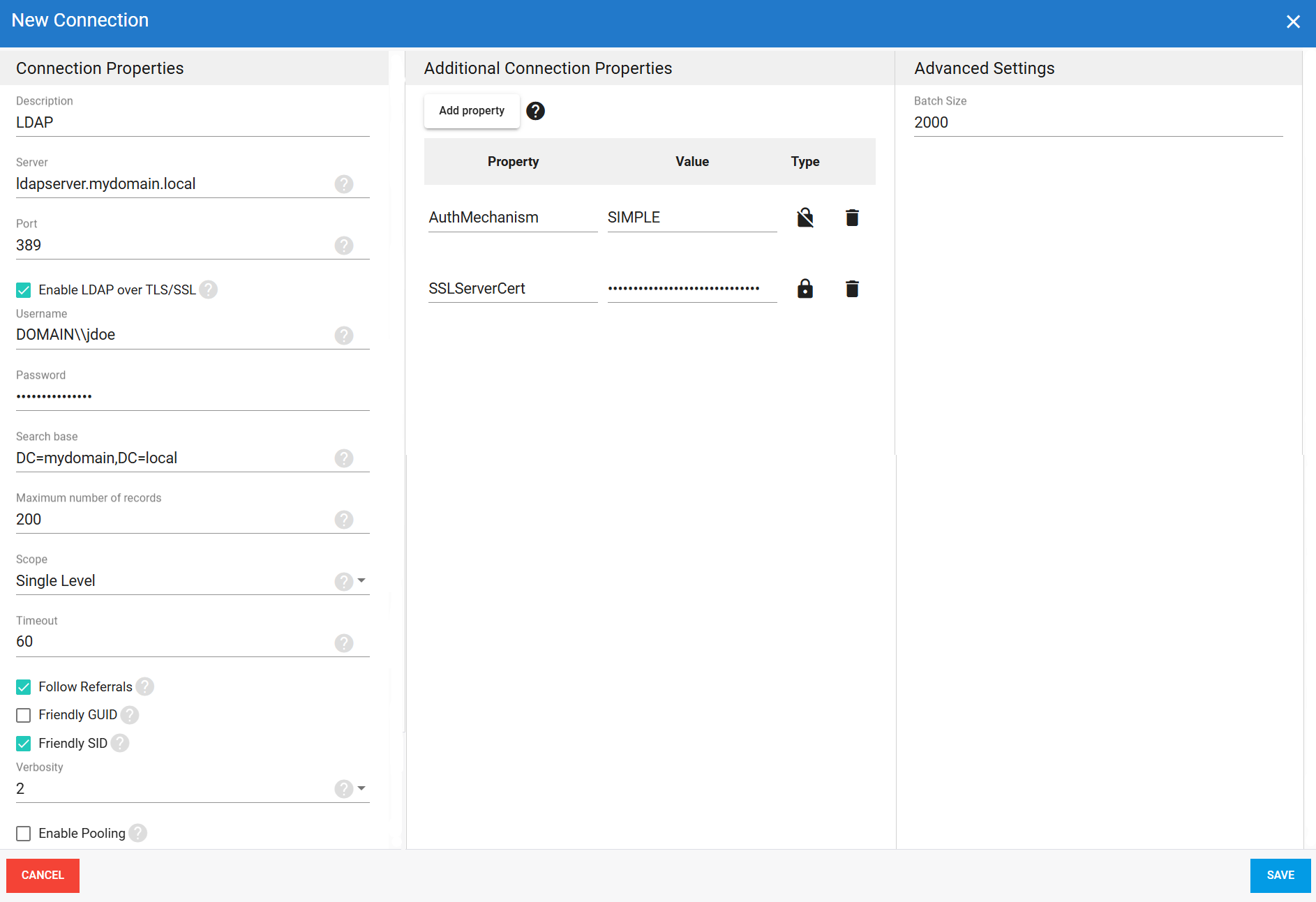

Completed LDAP source connection in DataSync, with all properties and settings filled in.
