GraphQL Source Connector

The GraphQL source connector lets DataSync retrieve data from a GraphQL API and load it into your data warehouse. DataSync supports four authentication modes for GraphQL: OAuth 2.0, OAuth PKCE, Basic, and NoAuth.

Once your source connection is ready, configure your destination connection to finish the setup.

Create a source connection in DataSync

1. Log in to DataSync.
2. From the welcome screen, select Connections.
3. Next to Source Connections, click New.
4. Select GraphQL.
5. Enter all required connection properties.
6. (Optional) In the Additional Connection Properties panel, click Add property and enter any extra parameters you need.
7. Configure the advanced settings to match your environment, including Tracking Type.
8. Click Save.

Connection properties

Property	What to enter
Description	Unique name for the connection. Example: GraphQL.
URL	Address of the GraphQL API endpoint. This must point to the specific GraphQL service endpoint, which may differ from the base API URL. Example: https://api.example.com/graphql.
Authentication Mode	Authentication method used to access the API. OAuth2 for the standard OAuth 2.0 flow. OAuthPKCE for the OAuth PKCE flow. Basic for username and password authentication. NoAuth for APIs that require no authentication.
Callback URL	OAuth only Redirect URL automatically generated by DataSync. Some APIs require this to be added to an authorized list of callback URLs in your application settings.
Client ID	OAuth only Application identifier assigned during registration. Found in your application settings or configuration portal. Example: client-id-987654.
Client Secret	OAuth only Confidential value known only to the client and the authorization server. Found in your application settings or configuration portal. Example: mySuperSecretValue.
Authorization URL	OAuth only URL that starts the authorization process. Available in the API documentation. Example: https://auth.example.com/oauth2/authorize.
Access Token URL	OAuth only URL used to exchange an authorization code for an access token. Available in the API documentation. Example: https://auth.example.com/oauth2/token.
Refresh Token URL	OAuth only URL used to exchange a refresh token for a new access token. Available in the API documentation. Example: https://auth.example.com/oauth2/refresh.
Scope	Access permissions requested during authentication. Verify the required scopes in your application settings. Example: read:users write:projects.
Username	Basic only Login account with the required API permissions. Example: User123.
Password	Basic only Password for this account. Example: P@ssw0rd!.
Convert all dates and times to GMT	Converts all date and time values returned by the API to GMT. Recommended when your GraphQL service runs in a different time zone and you need consistent timestamps across your data.
Page size	Maximum number of results returned per page. Larger values return more rows per page but may increase timeout risk.
Enable Pooling	Enables connection pooling, which keeps a set of database connections open and reuses them across extractions instead of opening a new connection each time. This reduces overhead and improves performance when multiple extractions run at the same time.
Pool idle timeout	Time in seconds a connection can stay idle before returning to the pool.
Max Pool Size	Maximum number of connections allowed in the pool at the same time.
Pool wait time	Time in seconds DataSync waits for an available connection before throwing an error.
Verbosity	Controls how much detail the connector writes to the log. Each level includes everything from the level below it, plus additional detail. 1 logs queries, row counts, execution start and end times, and errors. 2 adds cache queries and HTTP headers. 3 adds request and response bodies. 4 adds transport-level communication. 5 adds all interface commands.
Timeout	Time in seconds to wait before a connection attempt or query execution times out.

Additional connection properties

Use this panel to enter connection string properties not available in the Connection Properties panel. For sensitive values such as passwords, set the type to Encrypted. The value is hidden in the interface and stored encrypted in the back end.

Property	What to enter
HTTPHeaders	Custom HTTP headers required by the API. Add a separate entry for each header. When you add that select HTTP Headers as type. Example: Authorization: Bearer <token>.
ExpandTablesDepth	Controls how many levels of nested lists are expanded during table discovery. 0 no nested lists are expanded. 1 expands lists at the same level, but not nested ones. n expands lists to the specified depth. Set this to match the nesting level of your GraphQL data model.

Advanced settings

These settings control how the connector tracks data changes, handles time and regional configuration, and processes records during extraction. Configure them to match your GraphQL environment so that results stay accurate and consistent.

Setting	What to select
Tracking Type	Method for tracking data changes: None or Date.
Region	Region setting for the connector, if required by your setup.
Time Zone	Time zone matching your GraphQL environment.
Time Offset	Refresh offset in seconds to compensate for timing issues in record selection. Minimum 0, maximum 3600.
Batch Size	Number of records processed per batch during extraction. Larger batches can improve performance but use more memory. Default is 2000, maximum is 10000. Adjust based on your network speed and disk performance. The default works well in most cases.

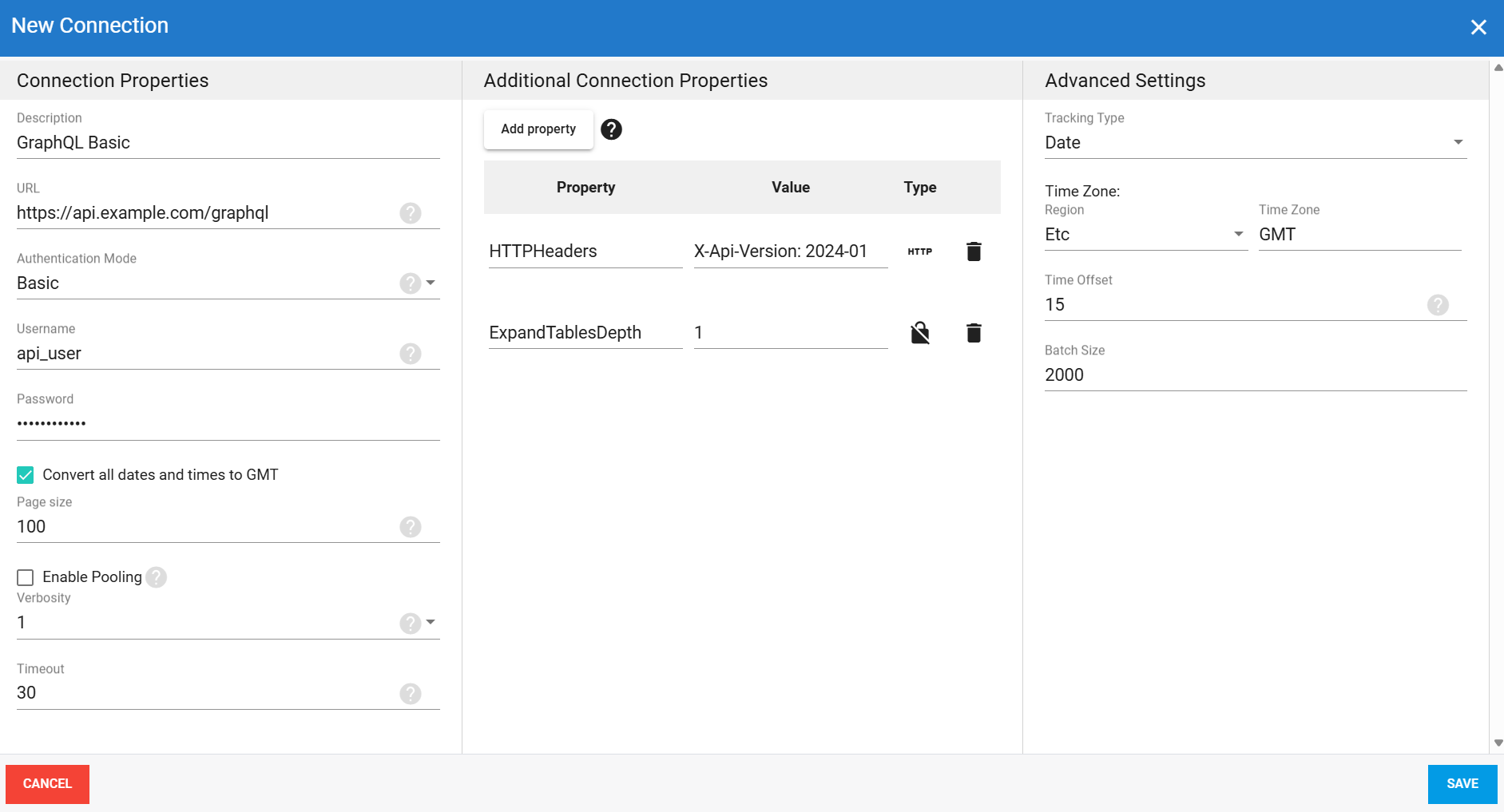

Basic authentication example setup

Completed GraphQL source connection in DataSync using Basic authentication, with all properties and settings filled in.

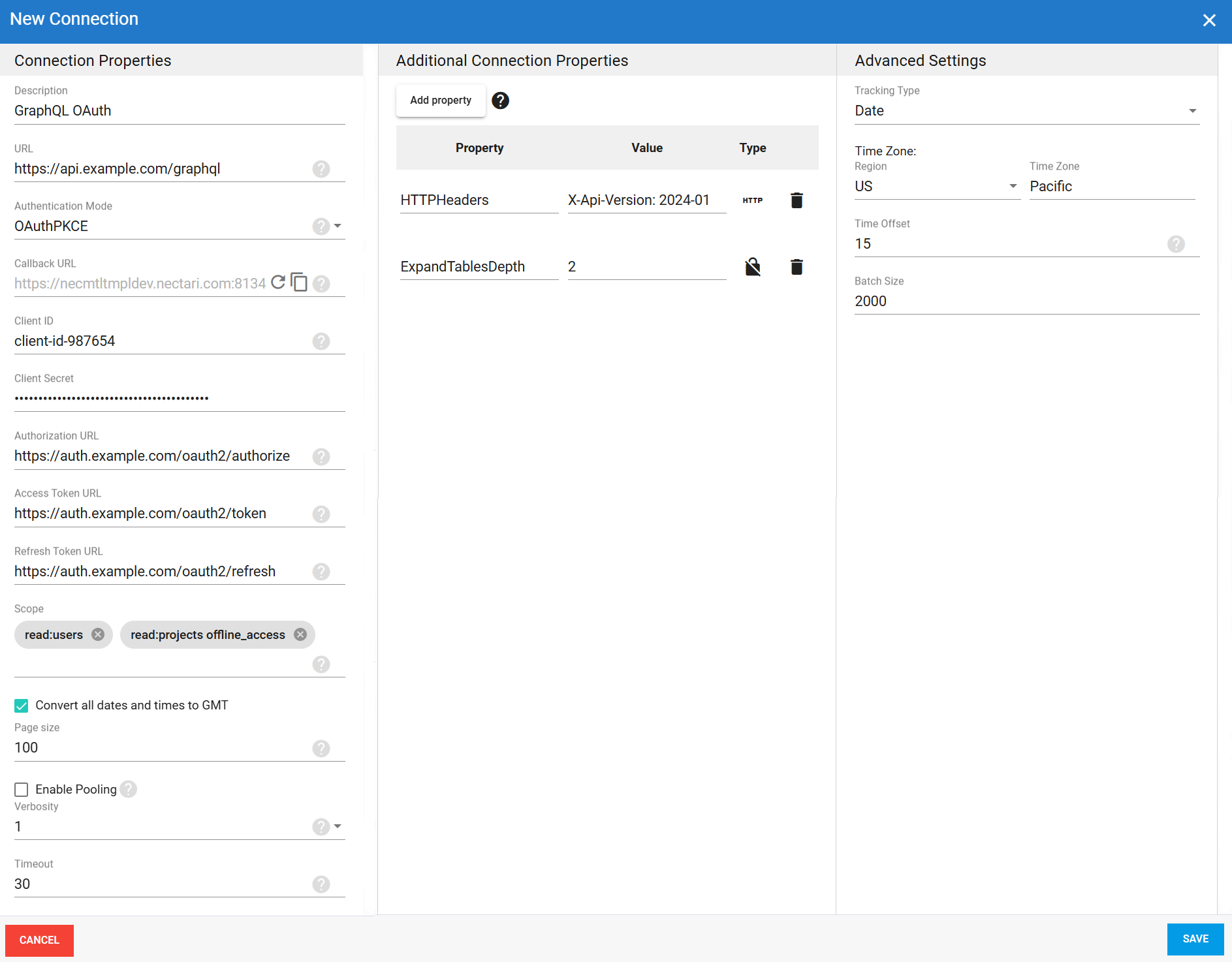

OAuth PKCE example setup

Completed GraphQL source connection in DataSync using OAuth PKCE authentication, with all properties and settings filled in.
