Google Analytics Source Connector

The Google Analytics source connector lets DataSync retrieve data from Google Analytics and load it into your data warehouse. Before you start, you need a Google account and an OAuth client set up in Google Cloud Console so DataSync can authenticate. Setup involves two parts that reference each other: you create an OAuth client in Google Cloud Console to grant DataSync access, then create a source connection in DataSync using the credentials from that client. It helps to keep both Google Cloud Console and DataSync open side by side while you work through the steps.

Google Analytics limits queries for View-based tables to a maximum of 10 measures and 7 dimensions. Keep this in mind when configuring your table fields.

Once your source connection is ready, configure your destination connection to finish the setup.

important

Authenticate with the same Google account used to create the Google Cloud project and OAuth client.

Step 1: Set up Google Cloud

Create or select a Google Cloud project

1. Go to the Google Cloud Console.
2. Sign in with your Google account.
3. Select Select a project, then do one of the following:
   • Select an existing project.
   • Select New project, enter a project name and location, then click Create.

Enable required APIs

1. In Google Cloud Console, select APIs & Services, then Enabled APIs & Services.
2. If you have multiple projects, make sure the right one is selected.
3. Select Enable APIs and services.
4. Search for Google Analytics API and click Enable.
5. Search for Google Drive API and click Enable.

Create OAuth credentials

1. In Google Cloud Console, go to APIs & Services, then Credentials.
2. Select Create credentials, then OAuth client ID.
3. Under Application type, select Web application.
4. Under Authorized JavaScript origins, add your DataSync server URL and your company domain.
5. Leave Authorized redirect URIs empty for now.
6. Click Create, then copy the Client ID and Client Secret for later use.

note

Values in Authorized JavaScript origins must be valid URLs ending in a domain extension such as .com or .net.

Step 2: Create the source connection in DataSync

Set up the connection

1. Log in to DataSync.
2. From the welcome screen, select Connections.
3. Next to Source Connections, click New.
4. Select Google Analytics.
5. Enter all required connection properties.
6. Copy the Callback URL shown in Connection Properties.

Add the callback URL in Google Cloud Console

1. In Google Cloud Console, go to APIs & Services, then Credentials.
2. Select your OAuth client.
3. Under Authorized redirect URIs, add the Callback URL.
4. Click Save.

Authenticate and authorize

1. (Optional) In the Additional Connection Properties panel, click Add property and enter any extra parameters you need.
2. Configure the advanced settings to match your environment, including Tracking Type.
3. Click Save and complete the Google sign-in and consent prompts.

Connection properties

Property	What to enter
Description	Unique name for the connection. Example: Google Analytics
Callback URL	Redirect URL automatically generated by DataSync. Must be added to Authorized redirect URIs in your Google Cloud OAuth client.
Client ID	OAuth client ID from APIs & Services > Credentials in Google Cloud Console. Example: 1234567890-abc.apps.googleusercontent.com.
Client Secret	OAuth client secret from APIs & Services > Credentials in Google Cloud Console. Example: xK8mNpL7vRtYw2cDjHs9bEuFgAiZo3qB.
Verbosity	Controls how much detail the connector writes to the log. Each level includes everything from the level below it, plus additional detail. 1 logs queries, row counts, execution start and end times, and errors. 2 adds cache queries and HTTP headers. 3 adds request and response bodies. 4 adds transport-level communication. 5 adds all interface commands.
Enable Pooling	Enables connection pooling, which keeps a set of database connections open and reuses them across extractions instead of opening a new connection each time. This reduces overhead and improves performance when multiple extractions run at the same time.
Pool idle timeout	Time in seconds a connection can stay idle before returning to the pool.
Max Pool Size	Maximum number of connections allowed in the pool at the same time.
Pool wait time	Time in seconds DataSync waits for an available connection before throwing an error.

Additional connection properties

Additional connection string properties not specified in the Connection Properties panel. For each property added, you can choose Visible or Encrypted. Selecting Encrypted hides the value from the interface and stores it encrypted in the back end, such as when defining passwords.

Parameter	Description
Property	Connection string property that defines the action or behavior. Example: DefaultColumnSize.
Value	Value for the property. Example: 4000.
Type	Visibility settings: Visible or Encrypted.

Advanced settings

These settings control how the connector tracks data changes, handles time and regional configuration, and processes records during extraction. Configure them to match your Google Analytics Online environment so that results stay accurate and consistent.

Setting	What to select
Tracking Type	Method for tracking data changes: None or Date.
Region	Region setting for the connector, if required by your setup.
Time Zone	Time zone matching your Google Analytics Online environment.
Time Offset	Refresh offset in seconds to compensate for timing issues in record selection. Minimum 0, maximum 3600.
Batch Size	Number of records processed per batch during extraction. Larger batches can improve performance but use more memory. Default is 2000, maximum is 10000. Adjust based on your network speed and disk performance. The default works well in most cases.

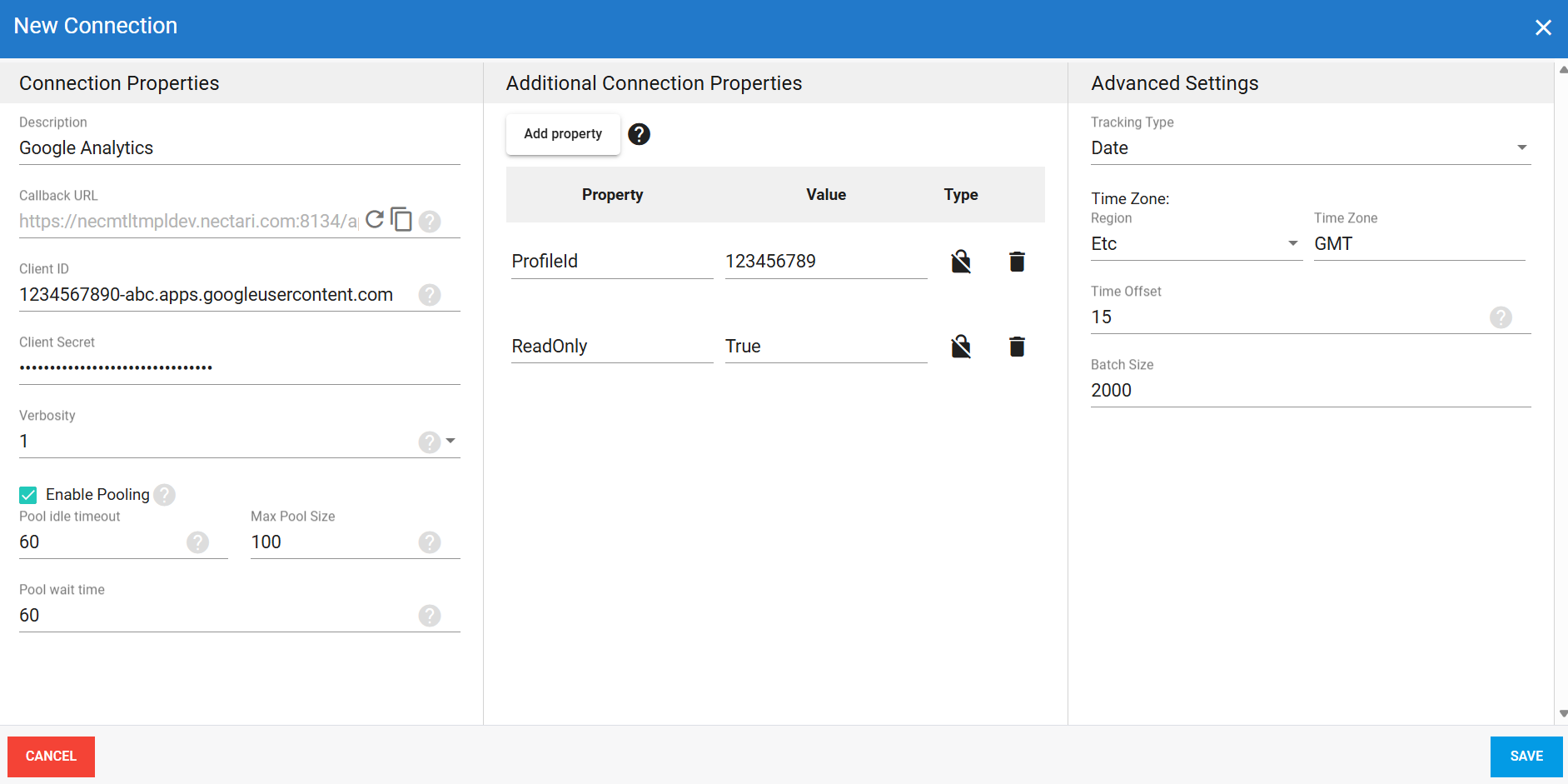

Example setup

Completed Google Analytics source connection in DataSync, with all properties and settings filled in.
